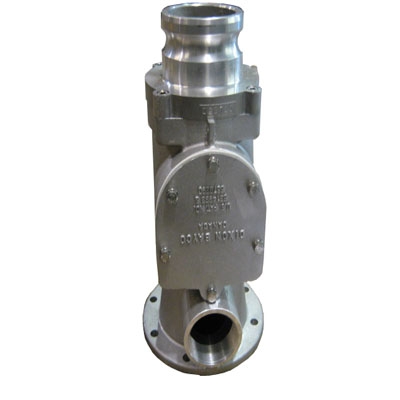

3in Blower Mounted Swing Check Valve Manifold

Item # 3090MA
$292.00

3090MA  Dixon bayco swing check valve manifold for pneumatic conveying systems.

Dixon Bayco blower mounted swing check valve including an integral 2 inch relief valve boss . Check valve has a 4" NPT threaded pump connection and a 3" male camlock fitting. Designed to be mounted directly to pneumatic blowers to prevent material backflow and protect the pump.


Dixon Bayco 3" Aluminum Swing check valve manifold with optional pressure relief valve mount connection point. Gardner Denver Truck Blower check valve  including the T5CDL9L, T5CDL12L, T5CDL13L, Drum D807, & MD T850 Blowers.

Features:

  • 2" NPT port for air relief valve
  • Interchangeable inlet / outlet ports
  • Interchangeable inlet / outlet ports



 Manufactured with a 4" TTMA flange connection for fastening directly to the blower




Inlet connection: TTMA flange design (Adapter flange to 3" ntp is typically used to mount or pipe down to truck blower blower discharge connection.) (TTF4AL-3MT Acc. Sold Separately)

Discharge Connection: Flange  3" aluminum male camlock

Construction: Aluminum manifold body:

Flapper Design: Metal to metal

Material: Aluminum

Component Material: White silicone flapper

Outlet: 3" Cam & Groove Adapter

Length:  12-1/2"

Maximum Temperature: 400°F


Body Material: Aluminum
Connection one: 3" Male camlock
Connection two: TTMA flange pattern
