  • Pneuclean 5 Inch Stainless Steel Inlet Filter
click to enlarge

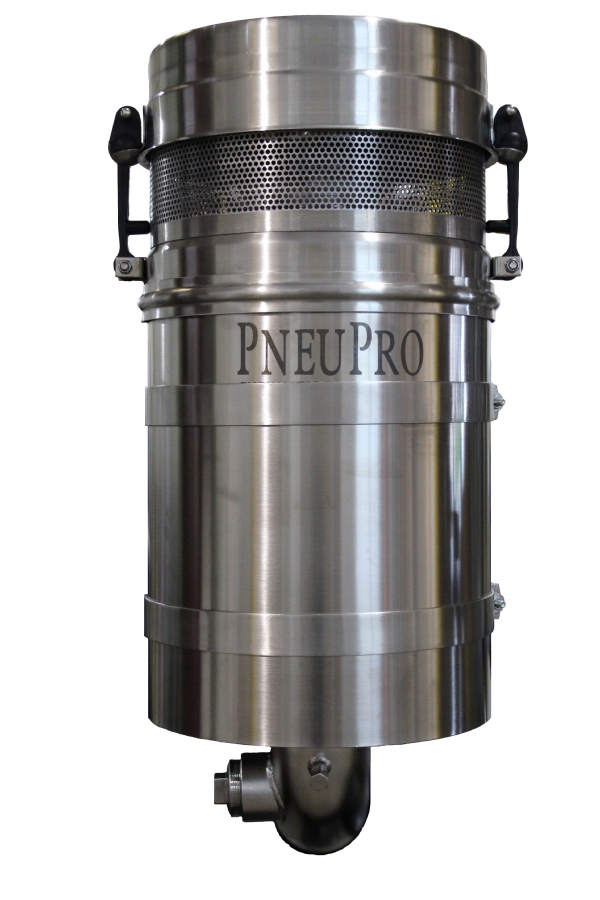

Pneuclean 5 Inch Stainless Steel Inlet Filter

Item # Pneuclean5
$836.00

Stainless steel inlet filter for dry bulk truck blowers. 4x5" Rubber hump hose connector included with filter kit. Suitable for pressure or vacuum service on Gardner Denver  T5CDL12L, T5CDL9L, MD T850, Drum D807 truck blowers.

Related Products
Stainless steel inlet filter for dry bulk truck blower applications. Complete 304 stainless steel construction with built-in silencer and 4" vac cam adapter for vacuum applications.  Inlet filter can be connected to 3", 4" & 5" blower intake ports using the 5" x  4" rubber hump hose connector which included with filter kit. Suitable for pressure or vacuum service on T5CDL12L, T5CDL9L, MD T850, Drum D807 truck blowers.
PneuClean 5 is a PneuPro Stainless Steel Inlet Filter with 5" elbow for pressure or vacuum service. The filter includes a vac cam adapter, Hump Hose, & mounting straps


Exclusive Features:

· Inlet Silencer: Unique inlet silencer chamber built in to reduce blower intake noise.

· Vacuum Relief Valve Mount: 2” MNPT mount for optional vacuum relief valve for use in vacuum applications.

· Multiple Sizes: available with a 4” or  5” intake elbow to reduce inlet restriction.

Oversized Filter Element: Inlet filters are shipped with an oversized filter element to provide enhanced air filtration & air flow. The filter housing also accepts common filter elements typically used on comparable inlet filters to allow  filter element options to suit your specific needs
 Standard Features & Components:

·  Polished 304 Stainless Steel Construction
·  Fully welded heavy duty  long lasting design
·  Built-in silencer to decrease intake blower noise
·  2” MNPT connection for vacuum relief valve*
·  Oversized filter element for improved filtration
·  1/4” boss for optional filter restriction indicator*
·  (2) Mounting brackets and hardware included
·  Hump hose connector
·  Constructed of food grade materials
·  Simplicity in design, removable screen lid using quick flex latches allows driver easy access to the 4” Camlock.
