How a Liquid Ring Pump Works

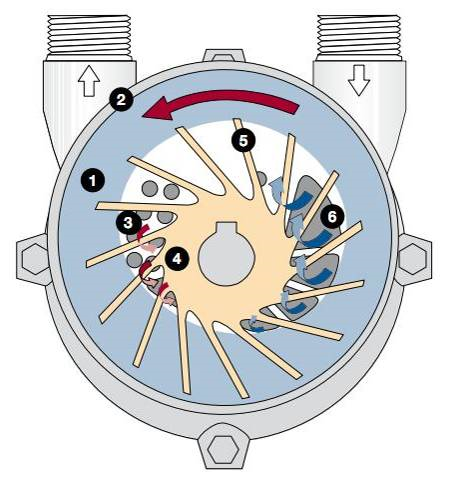

Above is a diagram in which you can see the 6 major parts of a liquid ring pump highlighted. These liquid ring pump parts are listed below, each with a number that corresponds to the number in the diagram.

1. Operating Liquid

2. Housing

3. Discharge Port

4. Impeller Shaft

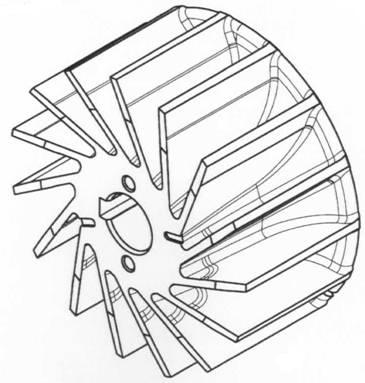

5. Impeller Blade

6. Suction Port


What Do These Liquid Ring Pump Parts Do?


• When the impeller turns inside the liquid ring pump, the operating liquid is put into motion and accelerated.This forms a liquid ring.

• The liquid ring rotates centered along the housing, while the impeller is located concentrically. The remaining space between the impeller blades is varying along the rotation creating the suction chamber.

• The gas gets compressed and exhausted on the pressure side of the liquid ring pump.

• The heat of compression is absorbed by the operating liquid of the liquid ring pump.









Be sure to check out our previous blog post right here

Questions? Contact Blocker and Wallace Service today, your Factory Authorized Elmo Rietschle Liquid Ring Distributor.
