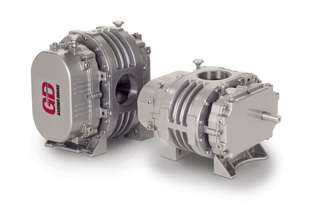

Q Series 4HVR Vertical Sutorbilt Legend DSL Blower
Item # 4HVRQ-
Part # 28G24
12 Quart Case: AEON PD Synthetic Blower Oil
Price - $360.00 BUY NOW -
Part # 28H283
AEON PD Grease Lubricant For Gardner Denver Truck Blowers
Price - $220.00 BUY NOW -
Part # 5L306
1/4in NPT Mushroom Style Breather for Oil Sump
Price - $23.27 BUY NOW
- Each Legend is individually tested to meet rigorous performance specifications
- Application flexibility with multiple configurations available
- Impellers are machined from cast iron to an exact profile and are permanently fastened to steel shafts providing contact free operation.
- Right hand and Left Hand center drive shaft configuration
- Gas applications: The Legend design accommodates mechanical gas seals for critical gas applications
- Quite operation due to an improved rotor design
- Every Sutorbilt Legend blower/vacuum pump is built under rigid ISO 9001:2000 quality standards
- Compatible as replacements for most competitive installations
- Gear and bearing lubrication occurs externally to the cylinder assuring clean, oil-free gas delivery under all operating conditions
- 18 months from the date of installation or
- 24 months from the date of shipment, whichever occurs first
Inlet: 1.5 ” NPT (S)
Outlet: 1.5” NPT (S)
*Intake and outlet ports: “S” = screwed connections with NPT threads. “F” = flanged intake ports / connections.
Performance Data:
Pressure Range: 2 PSIG - 7 PSIG
Vacuum Range: 2” HG - 16” HG
Air Flow / CFM Range: 76 CFM - 1,497 CFM
Performance data shown is based on standard conditions, for performance and blower sizing inquires please contact Blocker & Wallace Service LLC.
Manufactures Warranty: 18 months from date of installation / 24 months from date of shipment
