You are here: Home > All > Valves & Pipe Fittings > Oil Rite Bulls-Eye Sight Feed Valve

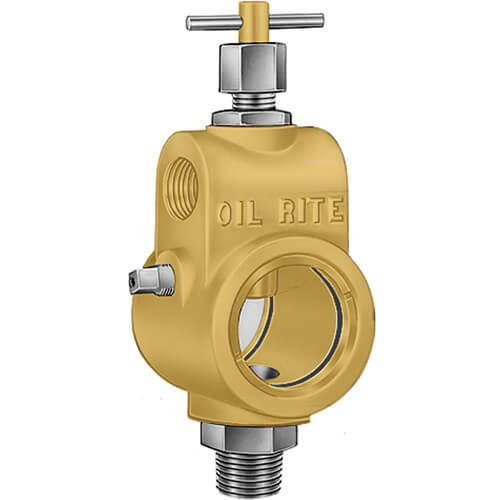

Oil Rite Bulls-Eye Sight Feed Valve

Item # B2501-3
$140.00

The B2501-3 Bulls-Eye Sight Feed Valve features a 1/4 Port with 1/2" inlet and outlet connection with an adjustable T handle. The large glass sight gauge allows visual observation of the liquid stream from a distance, with the volume of flow controlled by an adjustable needle valve. The Bulls-Eye Sight Feed Valve has excellent flow characteristics with low-pressure drop



Inlet port size: 1/2"  NPT Female
Outlet port size: 1/2 NPT Male
Port Size: 1/4" NPT Female

Universal Bulls-Eye Sight Feed Valves allow visual observation of the liquid stream from a great distance, with the volume of flow controlled by an adjustable needle valve. The bulls-eye sight feed valves have excellent flow characteristics with low pressure drop. These oilers are principally based on gravity or pressure lubricating systems of larger machinery where considerable  amounts of oil must be dispensed. The precision construction makes them especially suitable for paper mill machinery, steel mills, rolling mills, sugar mills, steam and gas engines, gear units, etc. Their use can be extended to any application requiring adjustable, visible flow control.

Part Number: B2501-3

Valve Body: Aluminum, Gold Anodized
Connection: NPT threaded
Pressure Range: 125 PSI Inlet to Orifice, 55 PSI Sight Chamber
Sight: Glass
Maximum temperature: 225F
Seal Material: Buna

Outlet port size: 1/2 NPT Male
Inlet port size: 1/2"  NPT Female
