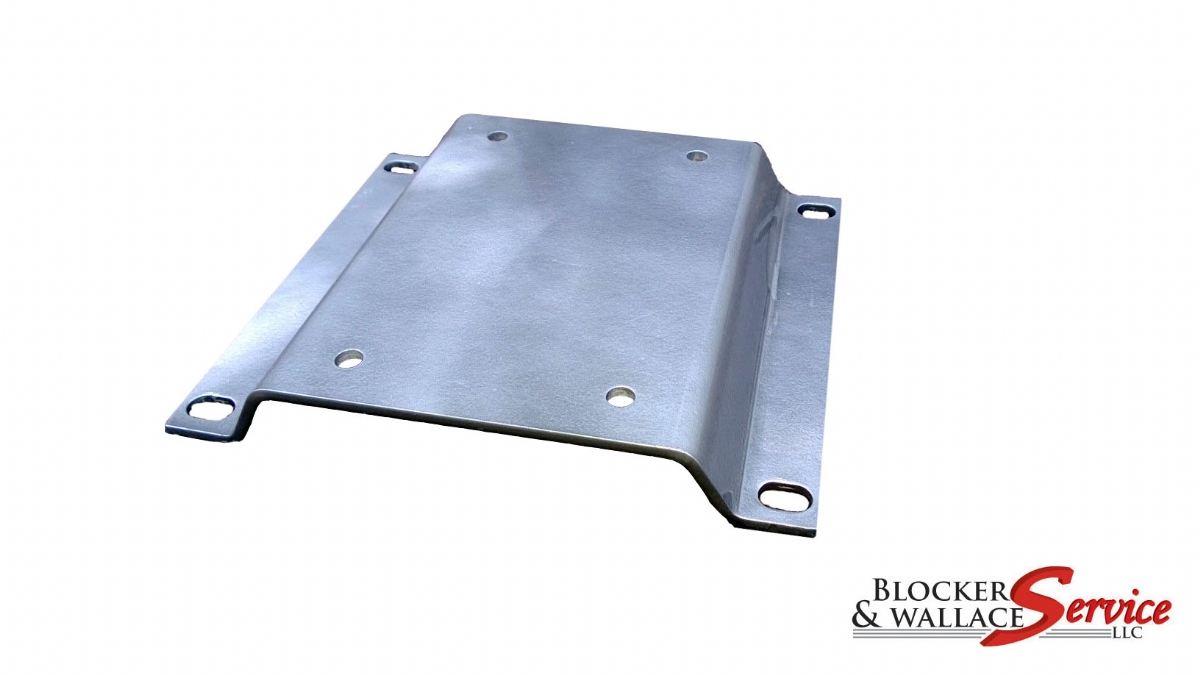

DuroFlow Vertical Mounting Feet: Model # 4504
Item # 202GGD247DuroFlow universal vertical mounting feet: Applicable blower models: 4504
Vertical mounting feet for DuroFlow 4500 Sereis Blowers. Vertical mounting feet allow for Horizontal air flow with Vertical top or bottom shaft configurations.
Vertical mounting feet for DuroFlow 4500 Sereis Blowers provide installation flexibility for PD blower installations on package bases. The vertical mounting feet allow for horizontal air flow with top or bottom hand drive shaft configurations.
Vertical mounting feet for DuroFlow 4500 Series Blowers.
Applicable blower models: 4504
Note: Reference the blower drive shaft configuration charts below if the is being converted from a Vertical drive shaft configuration to a horizontal drive shaft configuration.
Vertical Drive shaft orientation= Horizontal Air Flow.
Horizontal Drive shaft configuration = Vertical Air flow
Vertical Top Hand Drive ( VT) units can only be converted to: Horizontal LEFT drive shaft configurations
Bottom Hand Drive (BH) unit can only be converted to; Horizontal RIGHT drive shaft configurations
