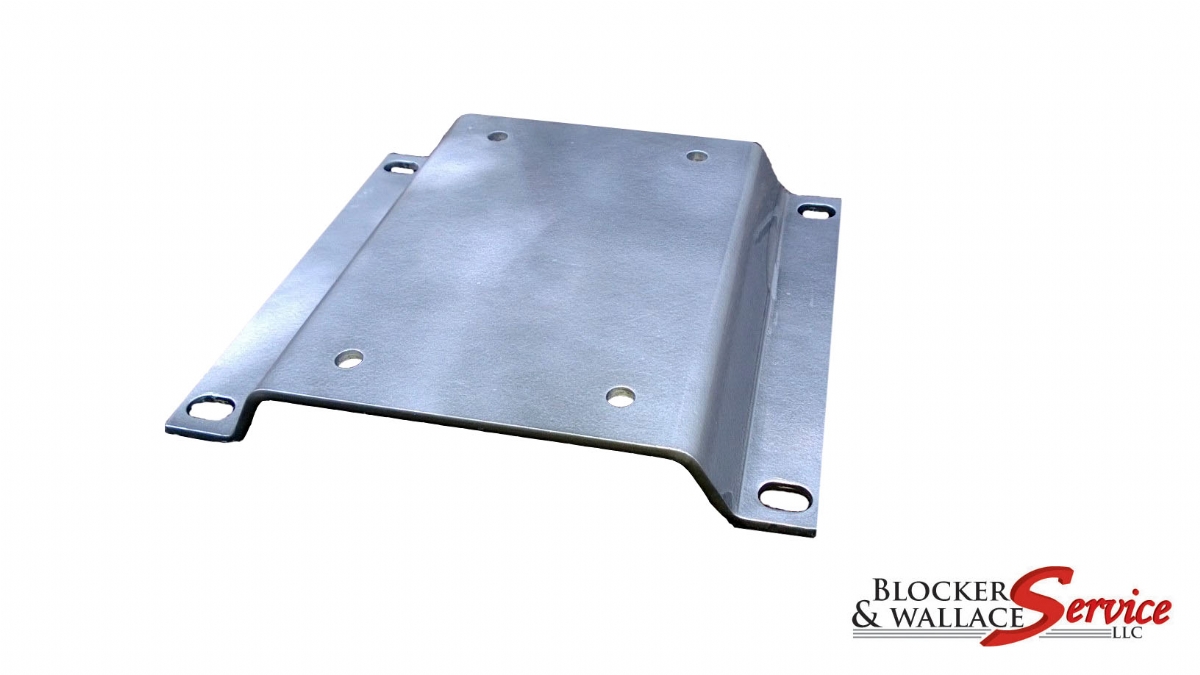

DuroFlow Vertical Mounting Feet: Model # 4512
Item # DF135405DuroFlow universal vertical mounting foot plate for 4512VT PD blowers and vacuum pumps.
Vertical mounting feet for DuroFlow 4500 Series Blowers. Vertical mounting feet allow for Horizontal air flow with Vertical top or bottom shaft configurations.
Vertical mounting feet for DuroFlow 4500 Sereis Blowers provide installation flexibility for PD blower installations on package bases. The vertical mounting feet allow for horizontal air flow with top or bottom hand drive shaft configurations.
Vertical mounting feet for DuroFlow 4500 Series Blowers.
Applicable blower models: 4512
Note: Reference the blower drive shaft configuration charts below if the is being converted from a Vertical drive shaft configuration to a horizontal drive shaft configuration.
Vertical Drive shaft orientation= Horizontal Air Flow.
Horizontal Drive shaft configuration = Vertical Air flow
Vertical Top Hand Drive ( VT) units can only be converted to: Horizontal LEFT drive shaft configurations
Bottom Hand Drive (BH) unit can only be converted to; Horizontal RIGHT drive shaft configurations
