You are here: Home > All > Positive Displacement Blowers > DuroFlow Blowers & Vacuum Pumps > New DuroFlow Blowers & Vacuum Pumps > Duroflow 4504

click to enlarge

Duroflow 4504

Item # 4504
Add to Cart for Pricing

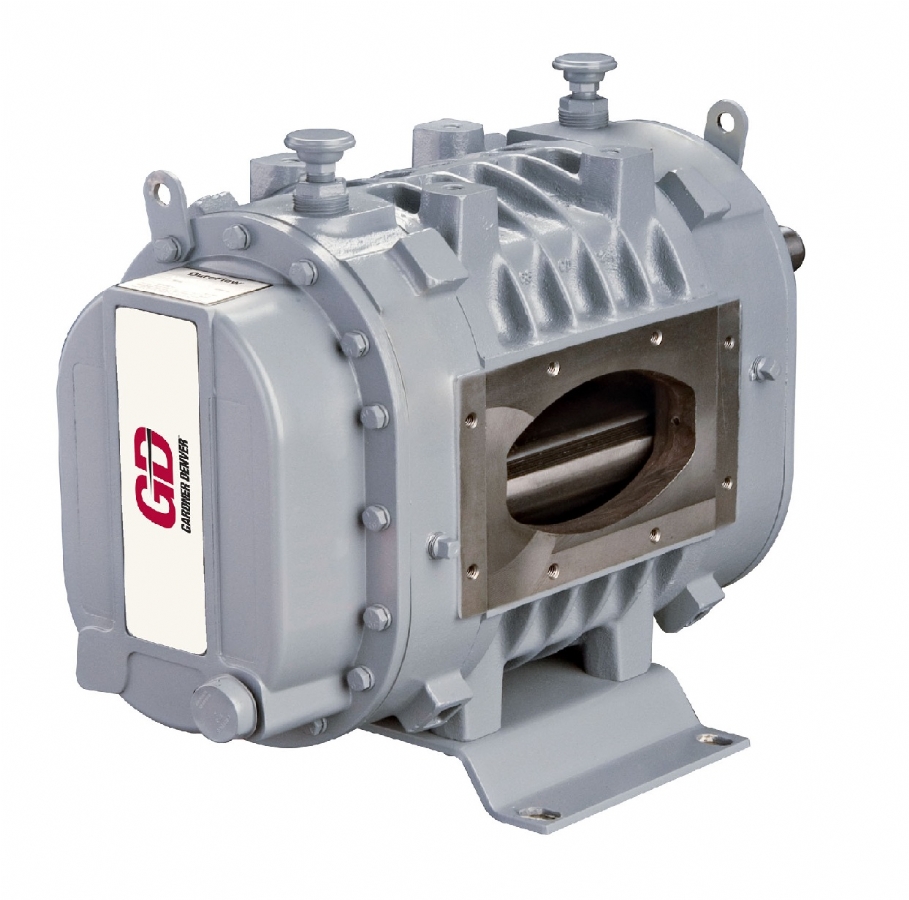

DuroFlow 4504VT blower including the inlet and outlet port gaskets.  The inlet and outlet port flanges are sold separately, click here to purchase the 4" port flanges.

DuroFlow® 4500 series positive displacement blowers & vacuum pumps have combined leading-edge technology and on-the-job experience to continuously deliver enhanced designs and improved performance. DuroFlow 4500 Series product line offers are various rotor lengths including 4504, 4506, 4509, 4512, & 4518 along with various shaft configurations to suit you specific application.  Gardner Denver products supported by a worldwide network of trained professionals and backed by a manufacturer’s 18 /12 month warranty.

 Place in cart to view price, you can always remove it later.

*Please Select from Drop Down Box Below*


Drive Shaft Configuration - 4504(Required) :

Related Products

DuroFlow 4504VT Blower & Vacuum Pump

For nearly fifty years, DuroFlow® positive displacement blowers/vacuum pumps have combined leading-edge technology and on-the-job experience to continuously deliver enhanced designs and improved performance.



DuroFlow Industrial Series

· Heavy-duty design

· Proven performance and dependability

· Dual Splash Lubrication (DSL) for continuous operation

· ISO 9001 quality standards

· Backed by local network of sales and service professionals

· Flex-Mount design, vertical or horizontal mounting

· Oil-free air distribution

· Superlative for a wide range of applications



Estimated Weight (lbs) 190

Maximum RPM 4,000
Drive shaft diameter (in).  1.4375

Performance Data:

Pressure to 15 PSIG

Vacuum to 16” HG

Air Flow / CFM Range to 1875 CFM

13 Models available

Performance data shown is based on standard conditions, for performance and blower sizing inquires please contact Blocker & Wallace Service LLC.



Features:

  • Each model delivers clean, oil-free air to a wide range of industrial applications
  • Dual splash oil lubrication on the drive and gear end.
  • Horizontal or vertical mounting configuration available for each blower.
  • Oversized bearings for added support and greater durability.
  • Innovative rotor/shaft design machined from a single, ductile iron casting.
  • Solid rotors with serrated sealing tips to improve efficiency.
  • Progressive porting aids in noise reduction.
  • Helical timing gears, precision machined from alloy steel forgings.

Manufactures Warranty: 12 months from date of installation or 18 months from date of shipment

Download Literary Materials

Duroflow Warranty information
