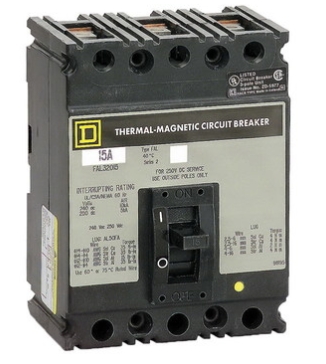

Square D FAL34020 20 AMP Circuit Breaker

Item # FAL34020

$150.00

Related Products

Part # FA36050
FA36050 Square D 50 AMP
Price - $350.00 BUY NOW

Description
Specs / Tech Info

MOLDED CASE, THERMAL MAGNETIC TYPE, 4.5 INCH W X 4.13 INCH D X 6 INCH H SIZE, 480 V MAX. AC VOLTAGE RATING, 250 V MAX. DC VOLTAGE RATING, UL, CSA APPROVAL, 240/480 VAC AT 50/60 HZ, 480 VAC STAR/277 VAC AT 50/60 HZ (UL/CSA/NOM), 415 VAC AT 50/60 HZ (IEC), 250 VDC VOLTAGE RATING, 10/25 KILOAMPERE AT 240 VAC, 18 KILOAMPERE AT 480 VAC STAR/277 VAC OR 480 VAC (UL/CSA/NOM), 10 KILOAMPERE AT 415 VAC (IEC), 10 KILOAMPERE AT 250 VDC INTERRUPTING RATING, 20 AMPERE CURRENT RATING, 3 POLE(S), LINE LUG, LOAD LUG TERMINAL TYPE, F FRAME TYPE, FA MODEL Molded Case

• Product Type : Circuit Breaker

• Protection : Thermal Magnetic

• Frame Type : F

• Voltage Rating : 240 Vac At 50/60 Hz, 480 Vac Star/277 Vac At 50/60 Hz, 480 Vac At 50/60 Hz (Ul/Csa/Nom)

• 415 Vac At 50/60 Hz (Iec)

• 250 Vdc

• Amperage : 20 Amps

• No. Of Poles : 3 Pole

• No. Of Phase : 3 Phase

• Interrupting Rating : 25 Kiloampere At 240 Vac, 18 Kiloampere At 480 Vac Star/277 Vac Or 480 Vac (Ul/Csa/Nom)

• 10 Kiloampere At 415 Vac (Iec)

• 10 Kiloampere At 250 Vdc

• Terminal Line Lug, Load Lug

• Size 4.5 Inch W X 4.13 Inch D X 6 Inch H

• Fal Model

• Applicable Standard W-C-375B/Gen

• Approval Ul, Csa, Ce

• Authentic Schneider Electric / Square D Product
