  • T5CDL12L Truck Blower
click to enlarge

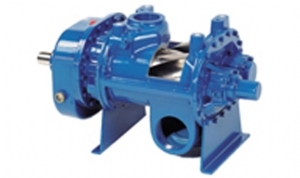

T5CDL12L Truck Blower

Item # T5CDL12L
Add to Cart for Pricing

The T5CDL12L CycloBlower Transport Series Truck Blower has a smooth running helical screw rotor design suitable for loading and discharging granules, Frac sand, pellets, and powders. This type of CycloBlower feeds at pressures up to 1.2 bar g (20 psi g) and has a maximum flow of up to 1650 m3 / hr (970 cfm). Designed exclusively for offloading dry products in the tank-truck markets!

To see your price add the T5CDL12L to your cart. You can always remove it later.


Related Products
 T5CDL12L Features:
 - Suitable for pressure discharge and vacuum loading applications
 - Compact lightweight design
 - Available with mechanical, diesel, hydraulic engine and electric drive
 - Saves almost two gallons of fuel per delivery
 - The Oil free design eliminates contamination of materials
 - High capacity
 - Fusible plug that inhibits overheating
 - Efficient, shock-free compression
 - Low noise emissions
- Ideal blower For FRAC SAND unloading

Typical applications:
 - Flour
 - Plastic pellets
 - Fly ash
 - Salt
 - Powders and pulverants
 - Frac
 - Silica sand
 - Dolomite
 - Pulverized lime stone
 - Pressure or vacuum loading
 - Granules
 - Cement

Backed by a 12 / 18 Month Warranty!

If you have any questions regarding our T5CDL12L CycloBlower Truck Blower please contact us today!

Designed exclusively for off loading dry products in the tank-truck markets.

The Maximum flow and pressure listed in the "Specs/Tech Info" section. Actual performance may vary based on system design, environment, and maintenance.
T5CDL12L Mobile Transport Cycloblowers Produce:
- Pressures to 18 psig  (20.0 PSIG INT.)
- Vacuum to 17" Hg
- 2000 RPM
- Max CFM: 750

Port Sizes:
Inlet: 4" npt
Outlet: 3" npt


Download Literary Materials

Inlet Filter Servicing Tips And tech help for Gardner-Denver blowers



Great Product!
4.0
Posted by:
Nick

I purchased the gardner denver T5CDL12L blower so I could haul frac sand and unload frac sand from my pneumatic trailer. It works perfectly for conveying frac sand and I highly recommend it. Purchase this pump if your going to haul fac sand.

What's great about it:
Runs great and is reliable
What's not so great:
whats not so great about it?
