10" Wafer Check Valve
Item # CV-10Plate mount check valve for 10" flange connections. The CV-10 aluminum check valve is precision machined for industrial pneumatic conveying applications.
Related Products
prev
next
-
Part # 28G24
12 Quart Case: AEON PD Synthetic Blower Oil
Price - $360.00 BUY NOW -
Part # T5CDL12L
Price - $7,950.00
SALE: 20% OFF
BUY NOW
-
Part # 28G23
1 Quart Aeon PD Synthetic Blower Oil
Price - $35.00 BUY NOW -
Part # TTF4AL
4-Inch Aluminum Weldable Flange
Price - $19.46 BUY NOW -
Part # 2180/20
2180-2 Pressure Relief Relief Valve set at 20 PSI
Price - $192.00 BUY NOW -
Part # A2180/20ADJ
2-Inch 20 PSI Adjustable Air Pressure Relief Valve
Price - $144.00 BUY NOW

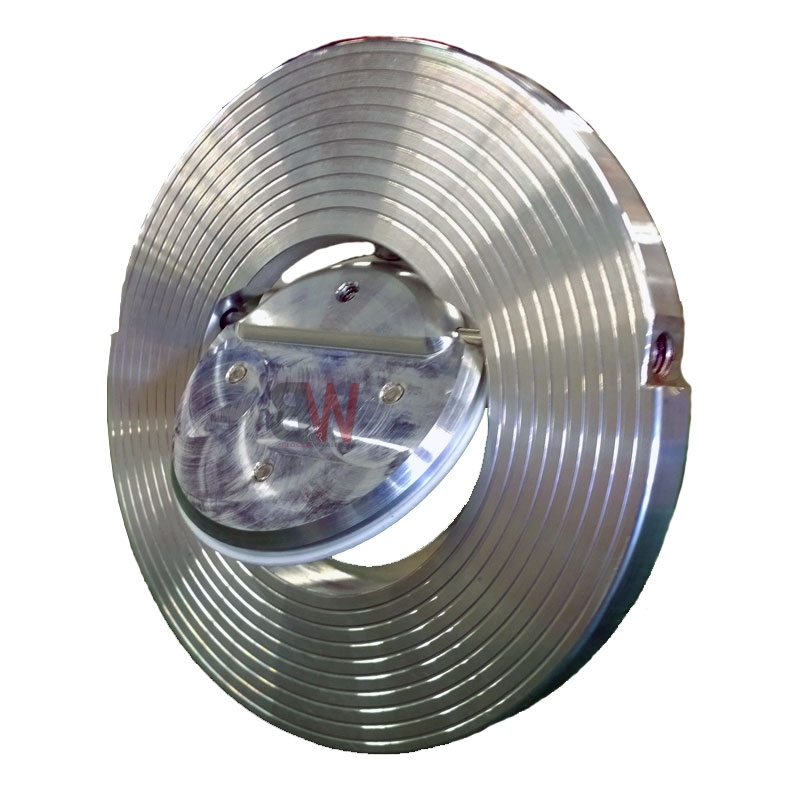

10" flange mount wafer style check valve to prevent product back flow. The CV-10 wafer style check valve features high quality aluminum & stainless steel construction including a Teflon seals. The stainless steel plate mount between two 150# 10" ANSI Flanges.
Mounting specifications; 10" flange
Material; Aluminum with stainless steel stem
Seal Material; Teflon
Width; 1" Thick ;
OD; 13-3/8" OD plate mount.
|

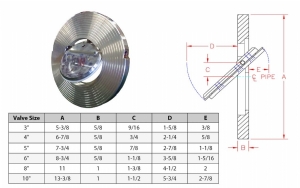

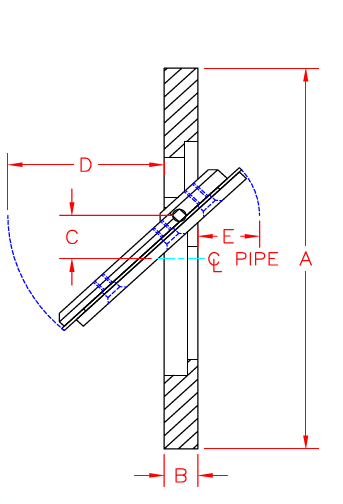

Valve Size |
A (OD) |
B (Thickness) |
C |
D |
E |
|
3" |
5-3/8 |
5/8 |
9/16 |
1-5/8 |
3/8 |
|
4" |
6-7/8 |
5/8 |
3/4 |
2-1/4 |
5/8 |
|
5" |
7-3/4 |
5/8 |
7/8 |
2-7/8 |
1-1/8 |
|
6" |
8-3/4 |
5/8 |
1-1/8 |
3-5/8 |
1-5/16 |
|
8" |
11 |
1 |
1-3/8 |
4-1/2 |
2 |
|
10" |
13-3/8 |
1 |
1-1/2 |
5-3/4 |
2-7/8 |
